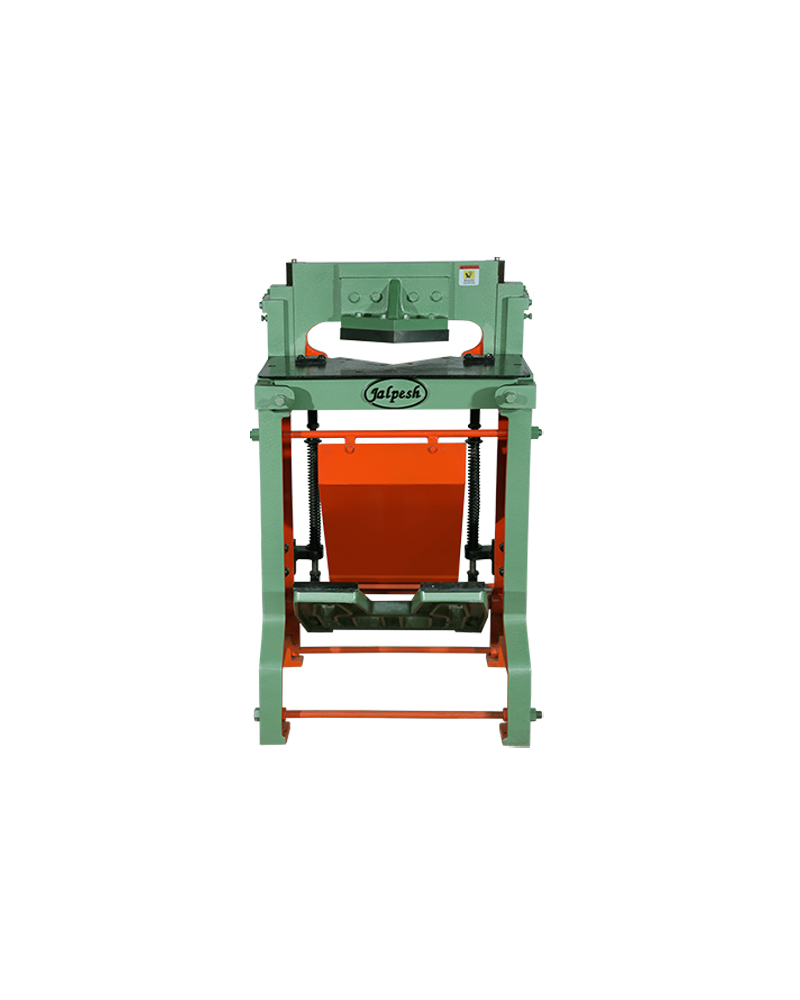

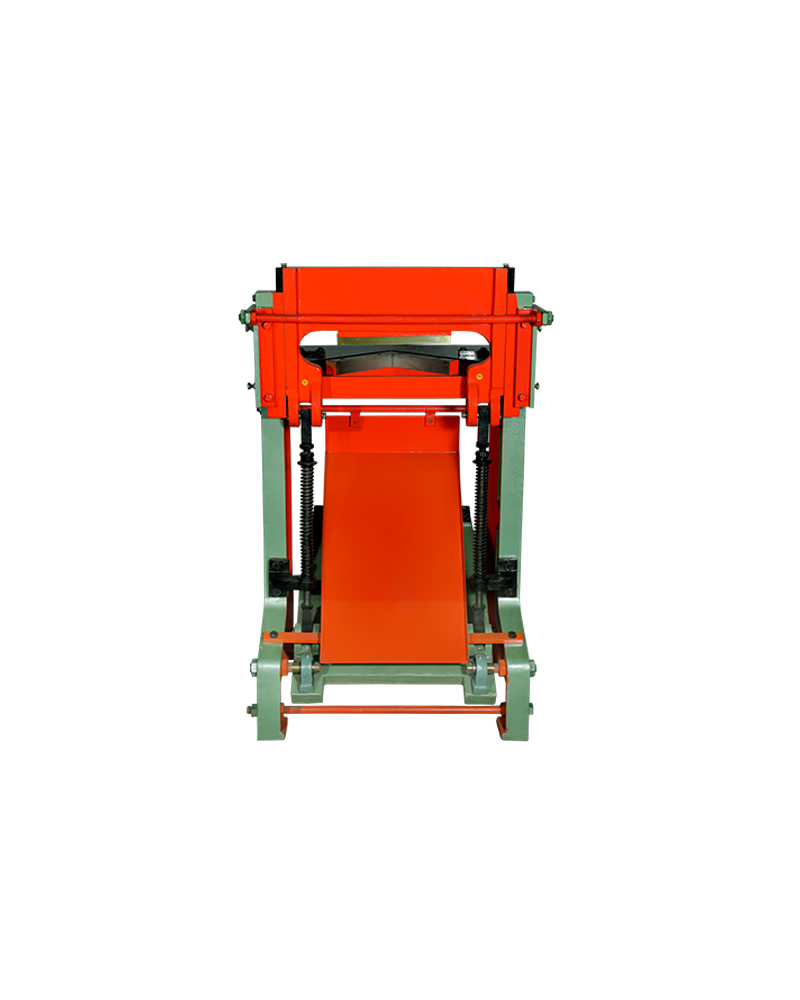

V Notching Pedal Shearing

Maintenance
Any Machinery, Big Or Small, Needs Proper Maintenance After The Same Period. Similarly, Shearing Machines Require Minor Check-Ups For Preventive Maintenance. It Helps In Trouble Free, Long Life And Increased Efficiency Of The Machine

  • After Each Use, Clean The Machine Thoroughly.
  • Lubrication Cups Are Provided At Necessary Places To Ensure Smoothness Of All Lubrication Points.
  • Every Week, Check All Bolts And Nuts And Tighten Them If They Are Loose.
SKU: NMDE-002-1-1-1-2 Categories: ,

Description

Salient Features:

  • Rigid And Streamline Construction Ensures Vibration-Free And Fatigue Less Function Of The Machine.
  • Working – Upper Beam&Ram Is Moving In C. I. Guide Ways With Precision Bearing Surface And Having Adjustment For Compensating Wear And Tear.
  • Adjustment – Adjustment Bolts Allow Setting Of Blades To Cut Various Thickness.
  • Blade – Machines Are Fitted With standard Quality Four Edge Shearing Blade To Avail Maximum Use Of Blades.
  • Blade Seng – The Setting Bolts Are Provided For Lower-Fixed Blade To Adjust Vertically When Height Of Blade Is Reduced After Resharpening.
  • Driving Pedal – The Extra Heavy Treadle With Proper Weight Is Spring Loaded And Very Well Designed For Operator’s Convenience.
    • Standard Equipments : Rear gauge, Side squaring and Front gauge, Foot pedal, Switch Motor pulley, Gear & Fly wheel guards and standard. Interaction manual, and Spanner.
Model Specification Value
JTSM-V Notch Size Of Machine 6″x6″x9.5″
Length Of Bed (MM) 635
Length Of Bed (Inch) 25″
Width Of Bed (MM) 330
Width Of Bed (Inch) 13″
Cap. Thickness M.S. 1MM
Size Of Blade 6″x6″x11″
Floor To Top Of Bed (MM) 902
Floor To Top Of Bed (Inch) 35.5″
Weight Of Machine (Kgs) 265
Machine (LxWxH) 750 x 700 x 1100
