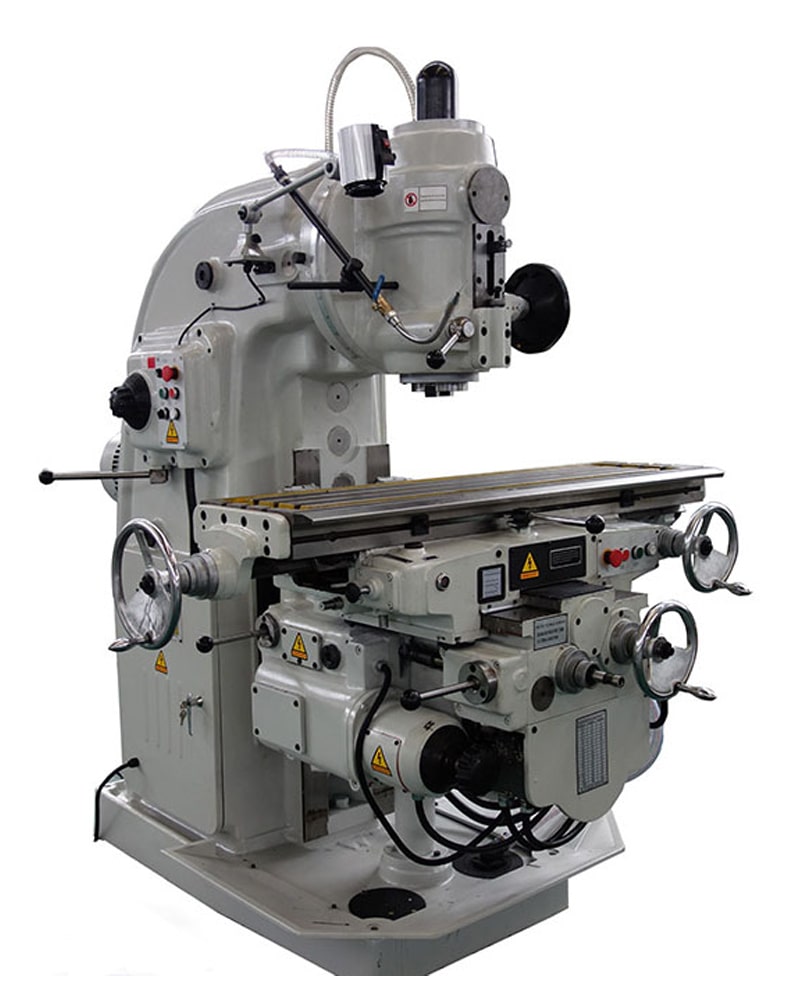

Vertical Knee-Type Milling Machines -X5032/X5040

Features:

  • One more powerful metal cutting machine.
  • High rigidity, ensuring stability and precision during operation.
  • Wide range of spindle feed options.
  • The spindle taper hole can accommodate many kinds of cutters, including cylindrical cutters, disc cutters, form cutters, and end milling cutters.
SKU: NMDE-002-1-2-1-2-1-2-1-2-2-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-2-2-1-2-2-1-1-1-1-1-1 Categories: , ,

Description

Heavy Duty Vertical Knee-Type Milling Machine X5032/X5040 Series

This document provides a comprehensive overview of the specifications, features, main usage, and advantages of the Heavy Duty Vertical Knee-Type Milling Machine X5032 and X5040 series, including models X5032, X5032B, X5032H, and X5032BH.

Main Usage:

  • Suitable for machining various components such as all parts planes, inclined planes, grooves, holes, keyways, etc.
  • Widely used in machinery manufacturing, mold making, apparatus production, instrument creation, and automotive industries.

Advantages:

  • Features rectangular guide ways for enhanced stability and accuracy.
  • Equipped with a hardened and ground table surface for durability and precision.
  • Spindle swivels +/- 45 degrees, allowing for versatile angular machining.
  • Quill moves up and down, providing additional depth control for boring and drilling operations.
Specification
Unit
X5032
X5032B
X5032H
X5032BH
Table size
mm
320×1325
320×1600
320×1325
320×1600
T-slots(NO./Widtd/Pitch)
mm
3/18/70
Longitudinal travel (manual/auto)
mm
700/680
900/880
700/680
900/880
Cross travel (manual/auto)
mm
255/240
Vertical travel (manual/auto)
mm
370/350
460/440
Rapid feed speed X/Y/Z
mm/min
2300/1540/770
Spindle bore diameter
mm
29
Spindle taper
7:24 ISO50
Spindle speed range
r/min
30-1500
Spindle speed step
steps
18 steps
Stroke of spindle quill
mm
70
Max.swivel angle of vertical milling head
±45°
Distance between spindle nose and table surface
mm
30-400
30-490
Distance between spindle axis and column guideway
mm
350
Feed motor power
kw
1.5
Main Motor Power
kw
7.5
Overall size(LxWxH)
mm
2294x1770x1904
2294x2050x1904
2294x1770x2084
2294x2050x2084
Net weight
kg
2900/3200
3000/3300
3100/3400
3100/3400
