Wire Butt Machine
Key Features :
- Ideal for micro and fine wire butt welding applications
- Compact and rigid construction
- Multiple current selector steps for precise control
- Consistent weld strength and clean joints
- Low power consumption
- Suitable for continuous production use
Description

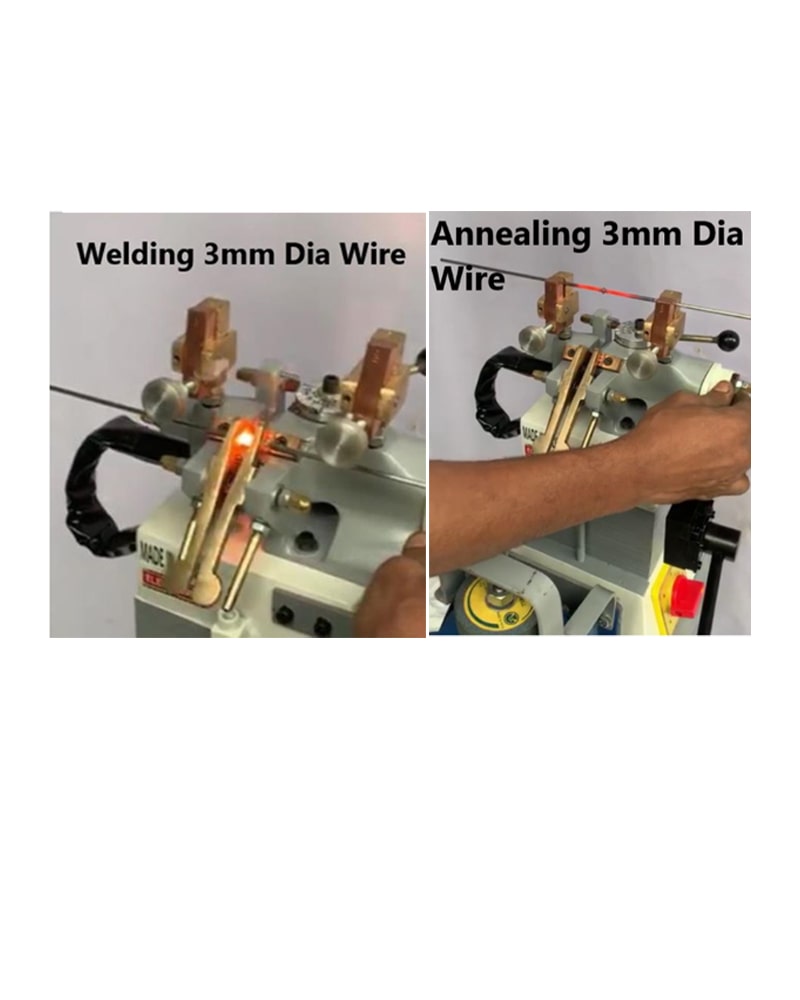

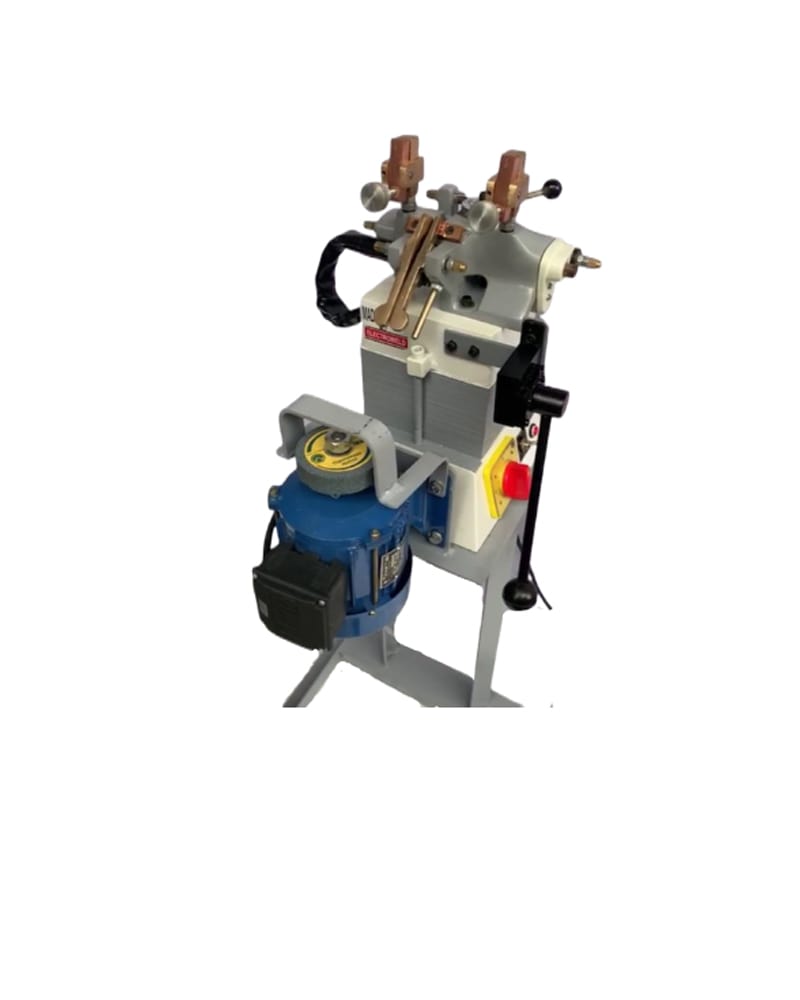

Micro Wire Butt Welder Machine
The Micro Wire Butt Welder Machine is specially designed for precision butt welding of fine and micro wires. It delivers consistent weld quality for small-diameter solid wires used in electrical, electronics, jewellery, and precision engineering industries. The compact design ensures ease of operation and reliable performance.
Applications
- Butt welding of solid micro wires
- Electrical and electronic components
- Jewellery and precision wire joining
- Automotive and instrumentation parts
- Manufacturing of coils and wire assemblies
|
Model
|

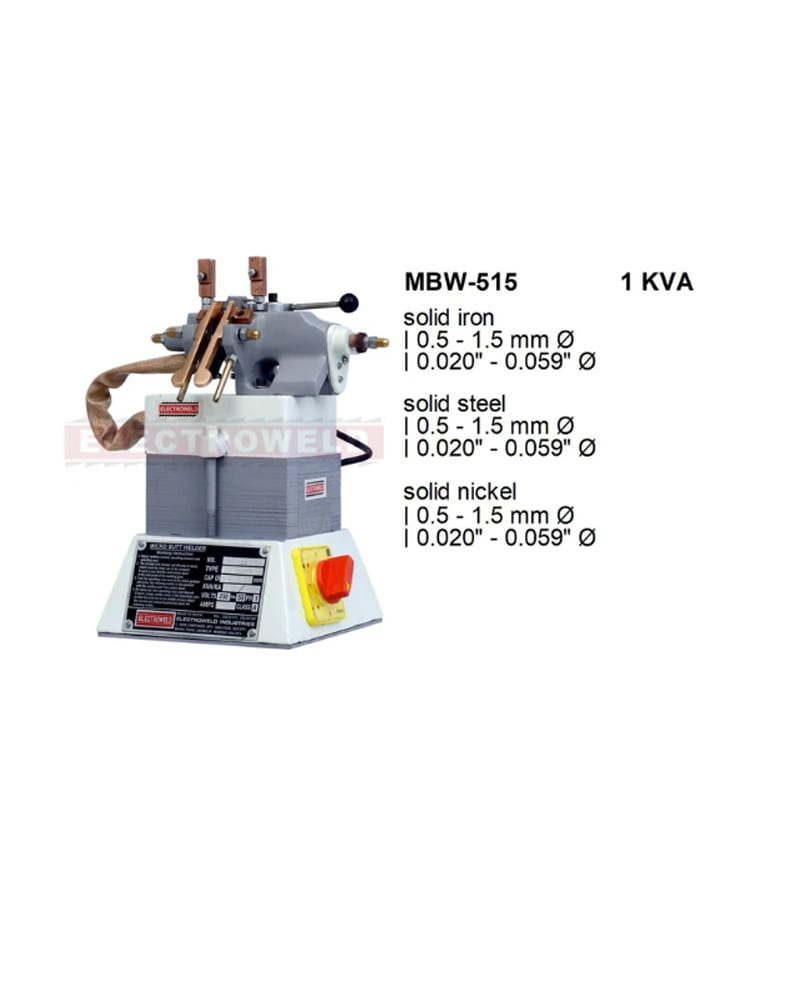

MBW-31
|
MBW-515
|
MBW-720
|
MBW-825
|
MBW-0308
|
MBW-0515
|
MBW-825C
|
MBW-825CC
|
MBW-1538
|
| Nominal Rating (KVA) |
1
|
1
|
1
|
1
|
1
|
1
|
3
|
4
|
5
|
| Input Volts |
230V AC (±10%)
|
230V AC (±10%)
|
230V AC (±10%)
|
230V AC (±10%)
|
230V AC (±10%)
|
230V AC (±10%)
|
230V AC (±10%)
|
230V AC (±10%)
|
415V AC (±10%)
|
| Frequency (Hz) |
50 / 60
|
50 / 60
|
50 / 60
|
50 / 60
|
50 / 60
|
50 / 60
|
50 / 60
|
50 / 60
|
50 / 60
|
| Phase |
1
|
1
|
1
|
1
|
1
|
1
|
1
|
1
|
2
|
| Fuse Rating (A) |
6
|
6
|
6
|
6
|
6
|
6
|
13
|
13
|
16
|
| Output Current Selector Steps |
8
|
8
|
8
|
8
|
8
|
8
|
8
|
8
|
8
|
| Shearing Attachment Range Diameter (mm) |
0.3 – 1.2
|
0.5 – 1.5
|
0.7 – 2.0
|
0.7 – 2.5
|
0.3 – 0.8
|
0.5 – 1.5
|
0.8 – 2.5
|
0.8 – 2.5
|
1.5 – 3.8
|
| Dimensions (mm) |
213 × 193 × 450
|
213 × 193 × 450
|
213 × 193 × 450
|
213 × 193 × 450
|
213 × 193 × 450
|
213 × 193 × 450
|
213 × 193 × 450
|
220 × 200 × 450
|
240 × 300 × 450
|
| Net Weight (Kg) |
15.5
|
15.5
|
15.5
|
15.5
|
15.5
|
15.5
|
20
|
20
|
35
|
| Material to be Welded |
Iron, Steel, Nickel
|
Iron, Steel, Nickel
|
Iron, Steel, Nickel
|
Iron, Steel, Nickel
|
Copper, Brass, Bronze, Aluminium
|
Copper, Brass, Bronze, Aluminium
|
Copper, Hi-Carbon, Aluminium, Mild Steel
|
Iron, Steel, Nickel, Copper, Brass, Aluminium, Hi-Carbon Steel
|
Iron, Steel, Nickel, Copper, Brass, Aluminium, Hi-Carbon Steel
|
| Application | Butt Welding Solid Wire or Rod | ||||||||
|---|---|---|---|---|---|---|---|---|---|
|
Model
|
MBW-31
|
MBW-515
|
MBW-720
|
MBW-825
|
MBW-0308
|
MBW-0515
|
MBW-825C
|
MBW-825CC
|
MBW-1538
|
| Welding Range Diameter (mm) – Solid Wire |
0.3 – 1.2
|
0.5 – 1.5
|
0.7 – 2.0
|
0.8 – 2.5
|
0.3 – 0.8
|
0.5 – 1.5
|
0.8 – 2.5
|
1.0 – 3.0
|
1.5 – 3.8
|
| Welding Range Diameter (inches) – Solid Wire |
0.012″ – 0.047″
|
0.020″ – 0.059″
|
0.027″ – 0.079″
|
0.031″ – 0.098″
|
0.012″ – 0.031″
|
0.020″ – 0.059″
|
0.031″ – 0.098″
|
0.039″ – 0.118″
|
0.059″ – 0.150″
|
| Cross Sectional Area (mm²) – Solid Flat |
0.07 – 1.13
|
0.20 – 1.77
|
0.38 – 3.14
|
0.50 – 4.91
|
0.07 – 0.50
|
0.20 – 1.77
|
0.50 – 4.91
|
0.79 – 7.07
|
1.77 – 11.34
|
| Welding Range (AWG / MCM) – Solid Flat |
31 – 18
|
24 – 15
|
21 – 12
|
20 – 10
|
28 – 20
|
24 – 15
|
20 – 10
|
18 – 9
|
15 – 7
|
| Welding Range (SWG / MCM) – Solid Flat |
31 – 18
|
25 – 17
|
22 – 14
|
21 – 13
|
31 – 18
|
25 – 17
|
21 – 13
|
19 – 11
|
17 – 9
|
