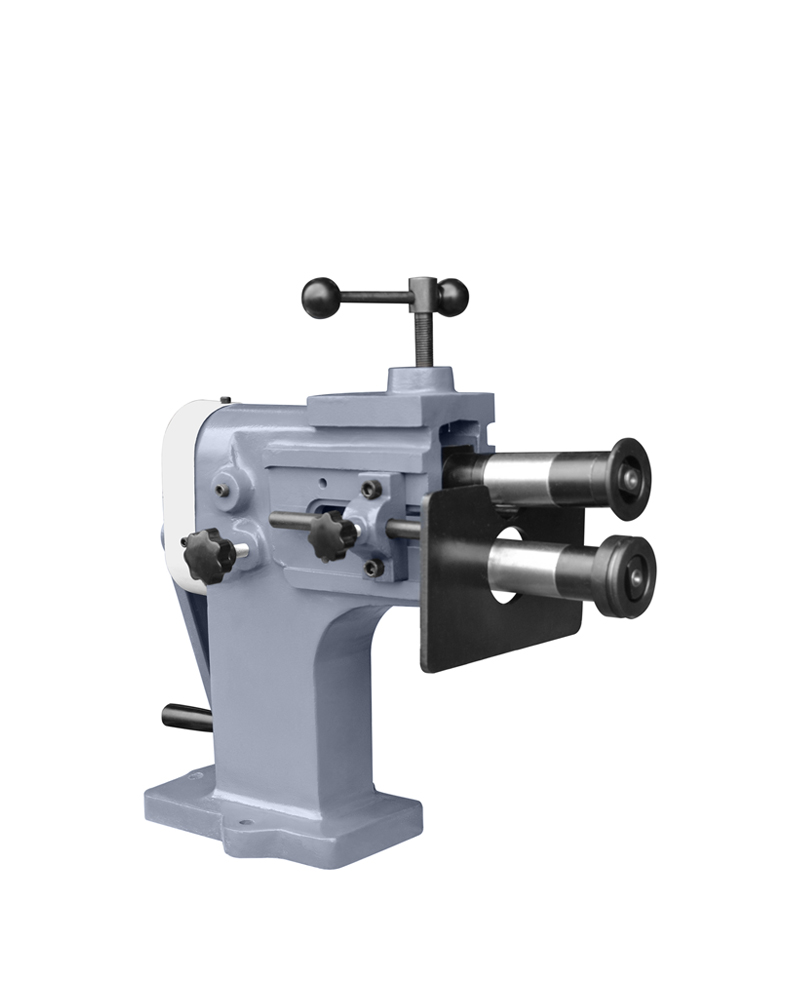

Hand Type Beading Machine
The TB-12 Hand Type Beading Machine is designed for precise sheet metal shaping, reinforcement, and decorative forming. Built with heavy-duty cast iron construction, it provides outstanding durability and stability for professional metalworking applications. It’s perfect for creating strengthening beads in sheet metal and is widely used in automotive, HVAC, and metal fabrication industries.
Description
Key Features of TB-12 Bead Bending Machine, Bead Roller
- Heavy and solid cast iron construction for long-lasting durability.
- Special steel adjustable bottom spindle for enhanced precision.
- Self-braking motor with sub frame (E-type) for safety and stability.
- Convenient foot pedal control (E-type) for easy operation.
- Steel-welded construction frame for additional strength.
- Adjustable idle roller to accommodate different workpieces.
- Steel shaft with durable bronze bushings.
- Equipped with a reduction motor and brake system.
- Smooth roller movement using foot pedal control.
- Supplied complete with a sturdy stand.

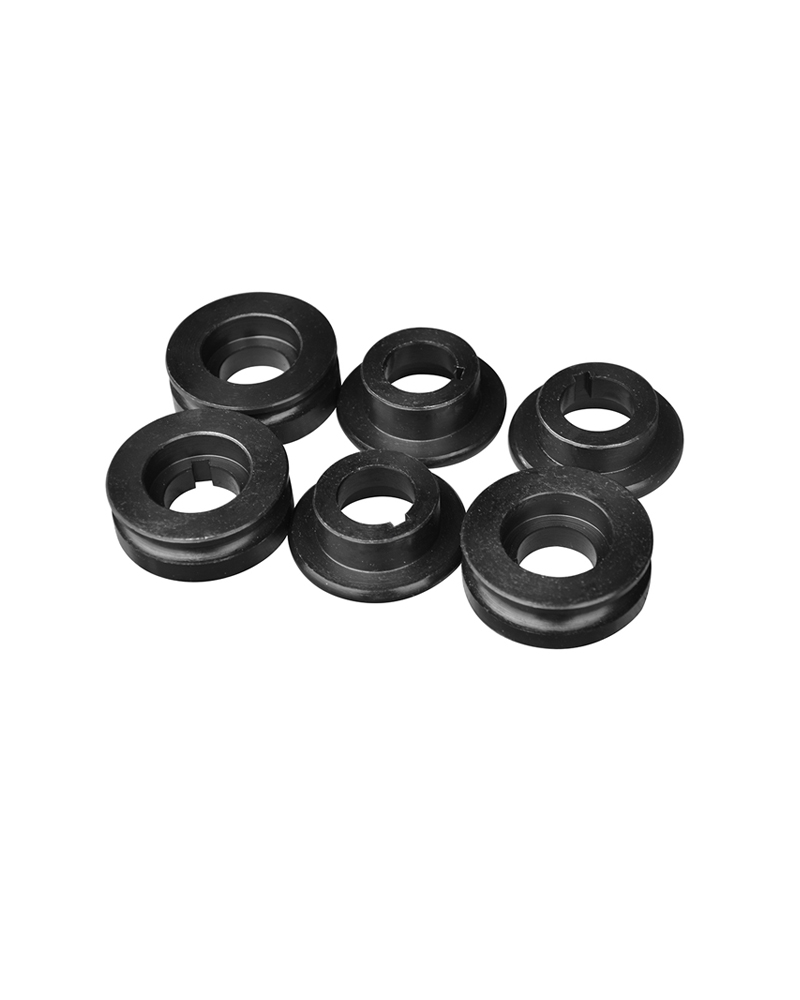

- Includes 4 sets of standard rollers for versatile use.
| Model | Cylinder lengtd | Sheet metal tdickness max | tdroat deptd | Cylinder speed (rpm) | Motor power | Dimension (CM) |
| ETB-12 | 140 | 1.2mm | 200mm | 32 rpm | 0.75 kW | 100×45×135 |
| ETB-25 | 280 | 2.5mm | 280mm | 20 rpm | 1.5 kW | 147×58×132 |
| ETB-40 | 300 | 4mm | 300mm | 15.3 rpm | 2.2 kW | 155×51×118 |
| TB-12 | 140 | 1.2mm | 200mm | 32 rpm | 0.75 kW | 63×25×50 |
