Hydraulic Section Pipe Roll Bending Machine
Features:
- The Round bending machine features an electric three-roller-wheel structure.
- It has the advantage of a two-axis drive. The upper axis can be moved up and down to adjust the diameter of the processed work piece.
- It can conduct round bending processing for plates, T-shaped materials and so on.
- Round bending machine has a standard roller wheel, of which the front two types of roller wheel can be used both vertically and horizontally.
- The reversible pedal switch facilitates the operation.
Description

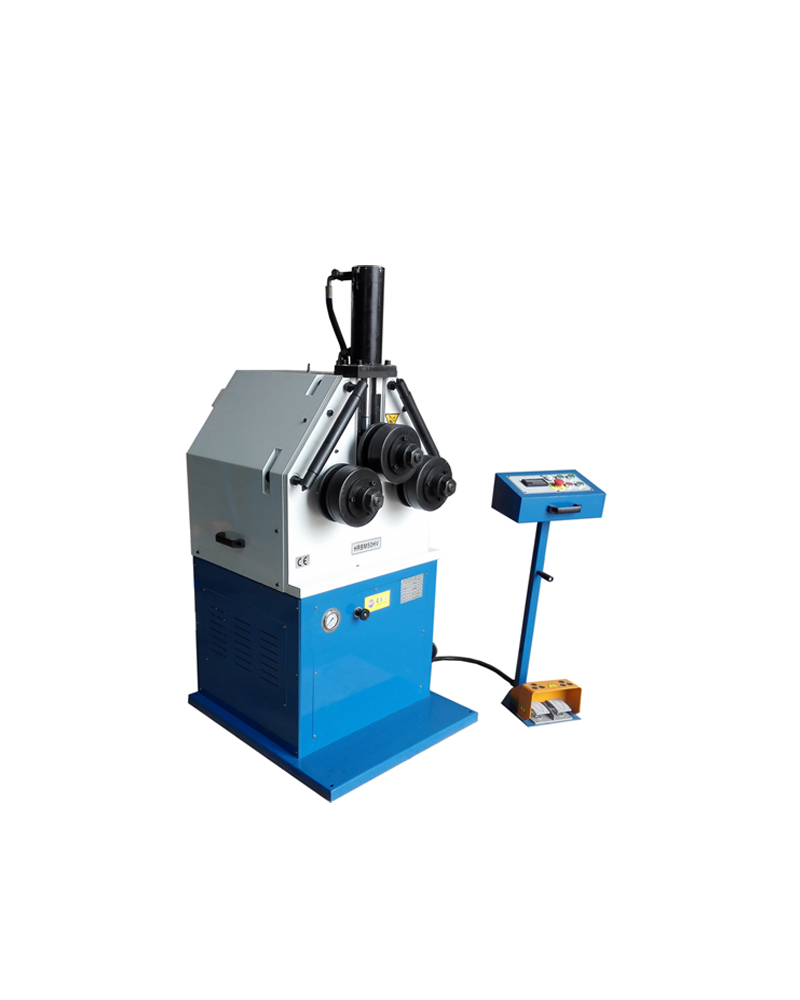

HRBM50HV Hydraulic Round Bending Machine With ORO
Hydraulic Round Bending Machine for metal
- The hydraulic round bending machine HRBM50HV features a steel plate welding structure. ( Steel-welded construction frame)
- The hydraulic round bending machine HRBM50HV has the advantages of hydraulic wheel drive and more power
- The nether two axes are driven by a powerful hydraulic motor, while the upper wheels are pushed to tift by the retractable spear of hydraulic cylinder.

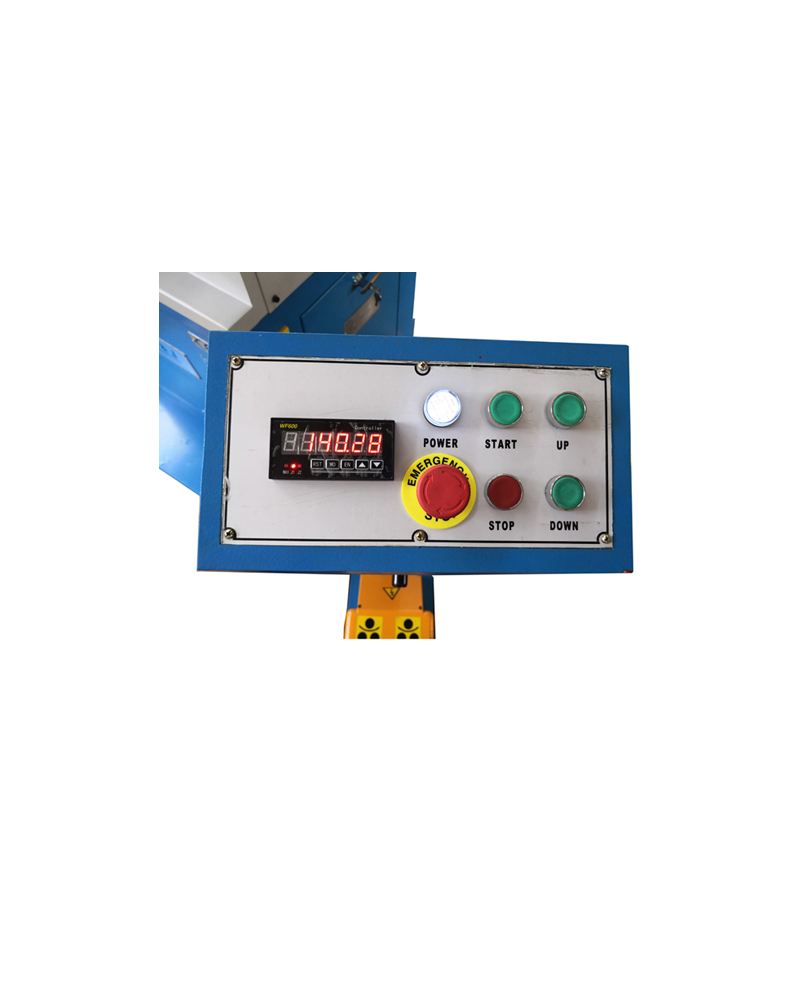

- The button panel features reliable functions that can easily conduct operations on machine
- The standard combination molds of hydraulic round bending machine can finish processing many work pieces in various shapes.
- With one standard combination roller
HRBM50HV Hydraulic Round Bending Machine With DRO Technical Specifications
| Model | HRBM40HV | HRBM50HV | HRBM65HV | HRBM40HV | HRBM50HV |
| Dia. Of roller(mm) | Ø 40 | Ø 50 | Ø 65 | 40 | 50 |
| Power | 1.5kw/2HP | 2.2kw/3HP | 2.25 kW | 1.5kw/2hp | 2.2kw/3hp |
| Spindle speed | 9.3r/min | 13r/min | 9.3r/min | 9.3r/min | 13r/min |
| Packing Size | 134x93x185cm | 150x95x134cm | 125x115x180cm | 134x93x185 | 150x95x134 |
| N.W./G.W. | 490/586KGS | 515/647KGS | 720/920KGS | 490/586 | 515/647 |
Capacity Specifications
| Capacity | Size | Min Dia (mm) | Size(mm) | Min Dia (mm) | Size | Min Dia (mm) |
 |
50×10 | 600 | 60×10 | 500 | 80×25 | 600 |
| 20×6 | 800 | 40×10 | 650 | 40×10 | 500 | |
 |
60×20 | 800 | 100×15 | 920 | 120×25 | 600 |
| 30×6 | 1250 | 60×10 | 1150 | 50×10 | 400 | |
 |
30×30 | 650 | 35×35 | 600 | 50 | 600 |
| 10×10 | 1100 | 20×20 | 780 | 20 | 400 | |
 |
50×6 | 600 | 60×7 | 750 | 80x40x7 | 500 |
| 30×3 | 500 | 50×5 | 700 | 40x40x5 | 400 | |
 |
50×6 | 600 | 60×7 | 750 | 80x40x7 | 400 |
| 30×3 | 500 | 50×5 | 700 | 40x40x5 | 360 | |
 |
60x40x6 | 600 | 80x45x6 | 600 | 100x50x6 | 600 |
| 30x15x4 | 900 | 65x40x5 | 550 | 50x40x5 | 500 | |
| Hydraulic Round Bending Machine Specifications | ||||||
| Model | HRBM40HV | HRBM50HV | HRBM65HV | |||
| Profile | Size | Min Dia (mm) | Size(mm) | Min Dia (mm) | Size | Min Dia (mm) |
 |
30×2 35×2 | 700 | 30×2 35×2 | 600 | 3-1/2″x2″ | 900 |
| 40×2 45×2 | 40×2 45×3 | 2-1/8″x2″ | 500 | |||
| 50×2 55×2 | 50×2 55×2 | ø 100x2mm | 1000 | |||
| 60×2 65×2 | 60×2 65×2 | ø 60x2mm | 500 | |||
