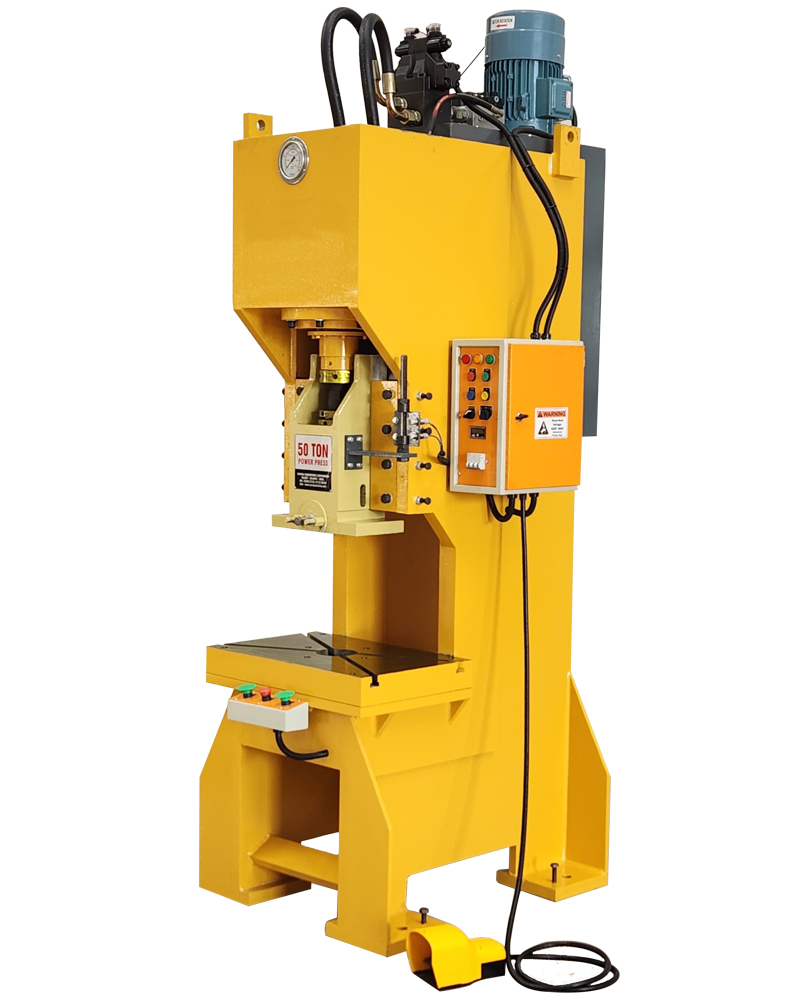

Hydraulic Press C Type
Salient Features
- Limit Switch For Easy Die Adjustment
- Adjustable Hydraulic Pressure Valve For Different Works To Avoid Accident
- Machine All Parts Move In Linear Motion To Reduce Maintenance
- Efficient Compact Silence Hydraulic Power Pack
- Attached Safety Light Curtain For Worker Protection
- Electrical Control Panel With Selection Of Inch-once-auto Mode Of Operation
- Foot Switch Movable For Operation From Safe Position
- Application: Punching, Stamping, Forming, Embossing, Cutting. Bending And Riveting Etc.
Description
Hydraulic Press are all Part Constructed, fabricated from steel is 2062 E-25Grade.Designed And Developed Through Years Of Experience In Sheet Metal Working Machineries. Everest Engineers Hydraulic Press Are Developed By Keeping latest Technology In Mind. Cylinders Are Mounted At Front To Up Side Of Press Brake And Are Synchronized For Paralielism Between Ram & Table, By Providing Ram Connected With cylinder.All Welding Edges Are Properly Machined For Best Weld Joints. The Electric Control Panel Is Fixed On Side Wall At Conventional place For Easy Reach Of Operator. It Includes Push Button Pendant And Foot Switch.
Table & Ram
Table & Ram Are Made Of Heavy Duty Graded Cast Iron Fg 260 & Seasoned. They Are Perfectly Aligned To
Each Other To Obtain Quality Pressing.
Standard Accessories
- Main Drive Motor
- Power Pack With All Hydraulic Component
- Electrical Control Panel With Limit Switch And Foot Switch
Optional Accessories
- Safety light Curtain (Sensor)
- Digital Stroke Counter
- Extra Base Plate
- Stock Counter In Control Panel
- l ubrication Pump (hand!motorizrd)
- Servo Feeder & De – Coiler & Straightener
| TON CAPACITY | 10 | 20 | 30 | 50 | 80 | 100 | 150 |
| STROKE LENGHT MAX. | 100MM | 125MM | 150MM | 150MM | 200MM | 200MM | 200MM |
| NO.OF STROKE PER 1 INCH LENGHT | 50 | 40 | 40 | 50 | 50 | 50 | 40 |
| BED TO RAM DIST. | 225MM | 250MM | 300MM | 350MM | 400MM | 450MM | 500MM |
| HOLE IN RAM | 25MM | 32MM | 38MM | 51MM | 51MM | 51MM | 63MM |
| BED SIZE | 455X305 | 505X305 | 555X380 | 710X455 | 775X550 | 815X585 | 965X685 |
| HP(MOTOR) | 2 HP | 3 HP | 5 HP | 5 HP | 7.5 HP | 10 HP | 15 HP |
| FLOOR TO BED | 725 APR. | 750 APR. | 750 APR. | 775 APR. | 755 APR | 755 APR. | 800 APR. |
| OIL TANK (LITRE) | 70 | 100 | 130 | 220 | 300 | 300 | 350 |
| APPROX WEIGHT | 600 KGS. | 1000 KGS. | 1400 KGS. | 2000 KGS. | 4000 KGS. | 5000 KGS. | 6000 KGS. |
